Please Note: Care and maintenance must be adhered to as per Aquatech's instructions to ensure this product works correctly. This includes inspecting and checking all seals before every use.
* Camera, lens ports and accessories are shown for demonstration purposes only and are not included.

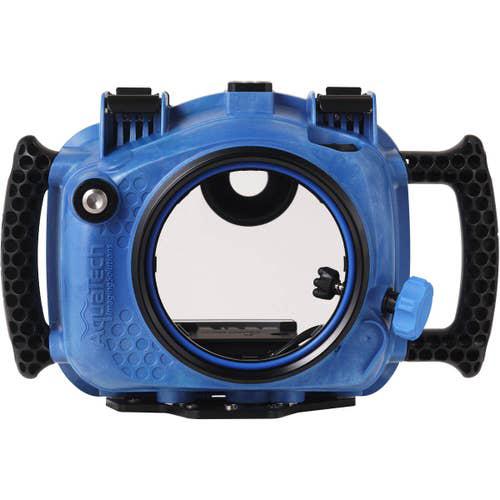

Designed to help you capture the action at the pool or in the surf, the AquaTech Reflex Base Water Housing for Canon 6D Mark II keeps underwater photography simple, so you can concentrate on getting the shot. The back is hinged along the bottom to make loading your camera quick and easy, with just two safety-latched quick release clips on the top to seal the housing closed. Electronic autofocus shutter controls are positioned for portrait and landscape shooting; beyond that, the housing is control-free, so your camera's controls need to be set in advance. The housing accepts AquaTech's P and PD series lens ports that accommodate a wide range of lenses, and it comes with large, ergonomic zoom control. It's equipped with a handle on the left side and a palm-stopper on the right, which helps steady the housing when shooting video. Optional compatible accessories include the AquaTech M3 Pistol Grip, Lux Flash Housing, and Sync Transmitter Housing. The housing is constructed from durable but lightweight polycarbonate, with stainless steel and anodized aluminium controls.
Key Features of the AquaTech REFLEX BASE - Canon 6D Mark II
- Depth Rating of 10 m
- Hinged Back for Easy Loading
- Dual Electronic AF Shutter Controls
- Compatible with P and PD Series Ports
- Handle and Palm Stopper
- Lightweight Polycarbonate Construction
- Stainless Steel and Aluminum Controls
- Compatible with Pistol Grip
- Use with Lux Flash and Sync Transmitter
Use and Handling
- Depth-rated to 10 m
- Designed for shallow water and surface use
- Electronic autofocus shutter controls positioned for portrait and landscape shooting
- All other controls must be preset or auto
- Accepts AquaTech P and PD series lens ports
- A hinged back panel with two latches makes loading the camera fast and easy
- Large ergonomic zoom control
- Left-side handle, right-side palm stopper
- Compatible with optional accessories including M3 Pistol Grip, Lux Flash Housing, and SYNC Transmitter Housing
Construction Details
- Durable yet lightweight polycarbonate housing
- Stainless steel and anodized aluminium controls
- 1/4"-20 tripod mount
- Measures 21.0 x 19.9 x 13.5 cm, weighs 1.6 kg
AquaTech REFLEX BASE - Canon 6D Mark II | Which AquaTech Lens Ports & Extensions are required for my Canon DSLR Lens?
We know that finding the right combination of lens ports and extensions for the lenses you wish to use with the AquaTech REFLEX BASE - Canon 6D Mark II can be a little tricky. We've compiled a guide below based on information from AquaTech for what is compatible with this housing, but we highly suggest checking AquaTech's website for the most up to date information*. Please see this page for our full range of AquaTech products.
If you are still unsure then you can rest easy, as our staff are on-hand and ready to help you in any way they can! All you need do is reach out and contact us via our contact form, by giving us a call, or by visiting your local digiDirect store.
Canon Zoom Lenses Compatible with the AquaTech REFLEX BASE - Canon 6D Mark II:
- Canon 8-15mm f/4L
Lens Length: 83mm
AquaTech Lens Port: PD-75
or PD-85 with P-30EX (dome port option)
Zoom Gear: N/A
- Canon 10-22mm f3.5-4.5
Lens Length: 90mm
AquaTech Lens Port: P-100
or PD-85 with P-30Ex (dome port option)
AquaTech Zoom Gear: N/A
- Canon 10-18mm f4.5-5.6 IS
Lens Length: 72mm
AquaTech Lens Port: P-80 N/A
- Canon 18-55mm f/3.5-5.6
Lens Length: 76mm
AquaTech Lens Port: P-90 N/A
- Canon 11-24mm f/4 L
Lens Length: 132mm
AquaTech Lens Port: PD-140 CZ 11-24mm
- Canon 16-35mm f2.8
Lens Length: 103mm
AquaTech Lens Port: P-120
or PD-140 (dome port option)
AquaTech Zoom Gear: CZ-16-35mm
- Canon 16-35mm f2.8 II
Lens Length: 111.6mm
AquaTech Lens Port: P-120 or PD-140 (dome port option)
PD-85 + P-70 EX (dome port option)
AquaTech Zoom Gear: CZ-16-35mm
- Canon 16-35mm f2.8 III L
Lens Length: 126mm
AquaTech Lens Port: P-130 or PD-140 (dome port option)
PD-85 + P-70 EX (dome port option)
AquaTech Zoom Gear: CZ 24-70mm V2
- Canon 16-35mm f4 IS
Lens Length: 113mm
AquaTech Lens Port: P-120 or PD-140 (dome port option)
PD-85 + P-70 EX (dome port option)
AquaTech Zoom Gear: CZ-16-35mm
- Canon 17-40mm f4
Lens Length: 96.4mm
AquaTech Lens Port: P-100 - NO FILTER ALLOWED
or PD-85 with P-30Ex (dome port option)
AquaTech Zoom Gear: CZ-17-40mm
- Canon 24-70mm f2.8
Lens Length: 157mm
AquaTech Lens Port: P-160
AquaTech Zoom Gear: CZ 24-70mm V1
- Canon 24-70mm f2.8 II
Lens Length: 144mm
AquaTech Lens Port: P-145 for full frame sensor
P-160 for APSC sensor
AquaTech Zoom Gear: CZ 24-70mm V2
- Canon 24-70mm f4 IS
Lens Length: 123.5mm
AquaTech Lens Port: P-135
AquaTech Zoom Gear: N/A
- Canon 24-105mm f4 IS
Lens Length: 140mm
AquaTech Lens Port: P-145 on full frame sensors
P-160 for APSC sensor
AquaTech Zoom Gear: CZ 24-70mm V2
- Canon 24-105mm f/4 IS II L
Lens Length: 160mm
AquaTech Lens Port: P-135 + P-30 EX for full frame sensor
P-160 for APSC sensor
AquaTech Zoom Gear: CZ 24-70mm V2
- Canon 70-200mm f2.8
Lens Length: 193.6mm
AquaTech Lens Port: P-215
AquaTech Zoom Gear: N/A
- Canon 70-200mm f2.8 IS
Lens Length: 197mm
AquaTech Lens Port: P-215
AquaTech Zoom Gear: CZ 70-200mm f/2.8 IS 2
- Canon 70-200mm f2.8 IS II
Lens Length: 199mm
AquaTech Lens Port: P-215
AquaTech Zoom Gear: CZ 70-200mm f/2.8 IS 2
- Canon 70-200mm f/2.8 IS III
Lens Length: 199mm
AquaTech Lens Port: P-215
AquaTech Zoom Gear: CZ 70-200mm f2.8 IS 2
- Canon 70-200mm f4
Lens Length: 172mm
AquaTech Lens Port: P-190
AquaTech Zoom Gear: CZ 70-200mm f/4
- Canon 70-200mm f4 IS
Lens Length: 172mm
AquaTech Lens Port: P-190
AquaTech Zoom Gear: CZ 70-200mm f/4 IS
Canon Prime Lenses Compatible with the AquaTech REFLEX BASE - Canon 6D Mark II:
- Canon 14mm f2.8 II L
Lens Length: 95mm
AquaTech Lens Port: PD-65 with P-30Ex
or PD-85 with P-30Ex (dome port option)
AquaTech Zoom Gear: N/A
- Canon 15mm f2.8 Fisheye
Lens Length: 63mm
AquaTech Lens Port: PD-65
or PD-85
AquaTech Zoom Gear: N/A
- Canon 20mm f2.8
Lens Length: 70.6mm
AquaTech Lens Port: P-80
or PD-85 (dome port option)
AquaTech Zoom Gear: N/A
- Canon 24mm f1.4 L II USM
Lens Length: 87mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Canon 24mm f2.8
Lens Length: 48.5mm
AquaTech Lens Port: P-65 N/A
- Canon 24mm f2.8 IS
Lens Length: 56mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Canon 28mm f1.8
Lens Length: 55.6mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Canon 28mm f2.8 IS
Lens Length: 52mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Canon 35mm f1.4 L
Lens Length: 86.2mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Canon 35mm f1.4 II L
Lens Length: 106mm
AquaTech Lens Port: P-120
AquaTech Zoom Gear: N/A
- Canon 35mm f2
Lens Length: 42.5mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Canon 35mm f2 IS USM
Lens Length: 63mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Canon 50mm f1.2 L USM
Lens Length: 66mm
AquaTech Lens Port: P-80
AquaTech Zoom Gear: N/A
- Canon 50mm f1.4
Lens Length: 50.5mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Canon 50mm f1.8
Lens Length: 41mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Canon 85mm f1.8
Lens Length: 71.5mm
AquaTech Lens Port: P-80
AquaTech Zoom Gear: N/A
- Canon 85mm f/1.4 L IS
Lens Length: 106mm
AquaTech Lens Port: P-120
AquaTech Zoom Gear: N/A
- Canon 85mm f1.2 L II USM
Lens Length: 97mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Canon 100mm f2
Lens Length: 73.5mm
AquaTech Lens Port: P-80
AquaTech Zoom Gear: N/A
- Canon 100mm f/2.8 L Macro
Lens Length: 123mm
AquaTech Lens Port: P-130
AquaTech Zoom Gear: N/A
- Canon 135mm f2
Lens Length: 112mm
AquaTech Lens Port: P-120
AquaTech Zoom Gear: N/A
Sigma EF-mount Lenses Compatible with the AquaTech REFLEX BASE - Canon 6D Mark II:
- Sigma 8mm f/3.5 circular fisheye
Lens Length: 68.6mm
AquaTech Lens Port: PD-65
AquaTech Zoom Gear: N/A
- Sigma 8-16mm f/4.5-5.6
Lens Length: 103.5mm
AquaTech Lens Port: PD-50 with 2 x P-30Ex’s
AquaTech Zoom Gear: N/A
- Sigma 10-20mm f/3.5
Lens Length: 79.5mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Sigma 14mm f/1.8 ART
Lens Length: 126mm
AquaTech Lens Port: PD-140
AquaTech Zoom Gear: N/A
- Sigma 15mm f/2.8 EX DG fisheye
Lens Length: 85mm
AquaTech Lens Port: PD-85
AquaTech Zoom Gear: N/A
- Sigma 12-24mm f/4 ART
Lens Length: 132mm
AquaTech Lens Port: PD-140
AquaTech Zoom Gear: SGZ 12-24mm ART
- Sigma 12-24mm f/4.5-5.6
Lens Length: 102mm
AquaTech Lens Port: PD-85 + P-30Ex
AquaTech Zoom Gear: N/A
- Sigma 14-24mm f/2.8 ART
Lens Length: 135mm
AquaTech Lens Port: PD-140
AquaTech Zoom Gear: TBA
- Sigma 18-35mm f/1.8 ART
Lens Length: 121mm
AquaTech Lens Port: P-130
or PD-140 (dome port option)
AquaTech Zoom Gear: SGZ 18-35mm ART
- Sigma 24-35mm f/2 ART
Lens Length: 122mm
AquaTech Lens Port: P-30 Ex + P-100
AquaTech Zoom Gear: N/A
- Sigma 20mm f/1.4 ART
Lens Length: 130mm
AquaTech Lens Port: PD-140
AquaTech Zoom Gear: N/A
- Sigma 30mm f1.4 DC ART
Lens Length: 59mm
AquaTech Lens Port: P-65
AquaTech Zoom Gear: N/A
- Sigma 24mm f1.4 DG ART
Lens Length: 91mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Sigma 35mm f1.4 DG ART
Lens Length: 94mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Sigma 50mm f/1.4 DG ART
Lens Length: 100mm
AquaTech Lens Port: P-120
AquaTech Zoom Gear: N/A
- Sigma 50mm f/1.4 EX DG HSM
Lens Length: 69mm
AquaTech Lens Port: P-80
AquaTech Zoom Gear:N/A
- Sigma 85mm f/1.4 DG HSM ART
Lens Length: 128mm
AquaTech Lens Port: P-130
AquaTech Zoom Gear: N/A
- Sigma 85mm f/1.4 EX DG HSM
Lens Length: 86mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
Tamron EF-mount Lenses Compatible with the AquaTech REFLEX BASE - Canon 6D Mark II:
- Tamron 15-30mm f/2.8 Di VC
Lens Length: 145mm
AquaTech Lens Port: PD-75 with P-70EX
AquaTech Zoom Gear: N/A
Tokina EF-mount Lenses Compatible with the AquaTech REFLEX BASE - Canon 6D Mark II:
- Tokina 10-17mm f/3.5-4.5
Lens Length: 71.7mm
AquaTech Lens Port: PD-65 (without hood),
PD-75 (with hood -vignetting may occur),
PD-85 for either model (below water)
AquaTech Zoom Gear: N/A
- Tokina 11-16mm f/2.8
Lens Length: 89mm
AquaTech Lens Port: P-100 Flat Port,
PD-65 with P-30Ex (Above water),
PD-85 with P-30Ex (Below water)
AquaTech Zoom Gear: TZ 11-16mm f/2.8
- Tokina 11-20mm f/2.8
Lens Length: 92mm
AquaTech Lens Port: P-100 Flat Port,
PD-65 with P-30Ex (Above water),
PD-85 with P-30Ex (Below water)
AquaTech Zoom Gear: TBA
Samyang/Rokinon EF-mount Lenses Compatible with the AquaTech REFLEX BASE - Canon 6D Mark II:
- Samyang 8mm f/3.5 Fisheye (No Hood)
Lens Length: 78mm
AquaTech Lens Port: PD-75
AquaTech Zoom Gear: N/A
- Samyang 14mm T 3.1
Lens Length: 87mm
AquaTech Lens Port: PD-65 with P-30Ex above water
or PD-85 with P-70Ex for below water
AquaTech Zoom Gear: N/A
- Samyang 24mm T 1.5
Lens Length: 83mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Samyang 35mm T1.5
Lens Length: 78mm
AquaTech Lens Port: P-100
AquaTech Zoom Gear: N/A
- Samyang 85mm T1.5
Lens Length: 73mm
AquaTech Lens Port: P-80
AquaTech Zoom Gear: N/A
AquaTech Port Selection Information
- PD-65: This is a dome port designed for the Fisheye lens and primarily used above water.
- PD-135: This is a dome port primarily designed for the Nikon 14-24mm f2.8 & 16-35mm f4.
- PD-8 5: This is a large dome port with an element machined from a 9" Diameter dome. This is primarily used for underwater and over/under shots. The port has an outer diameter of 8" and an overall height of 4".
- Flat Element Ports: All other ports are equipped with flat elements. For best results, the lens elements should be as close as possible to the port element. These ports are used mainly for above-water shooting. All Flat Elements have a SAR coating.
- P-30Ex, P-50Ex and P-70Ex: These are extension rings that increase the length of the port by 30mm or 70mm. The ring screws onto the housing and the port screws into the ring.
* list compiled March 2021, guide only.
