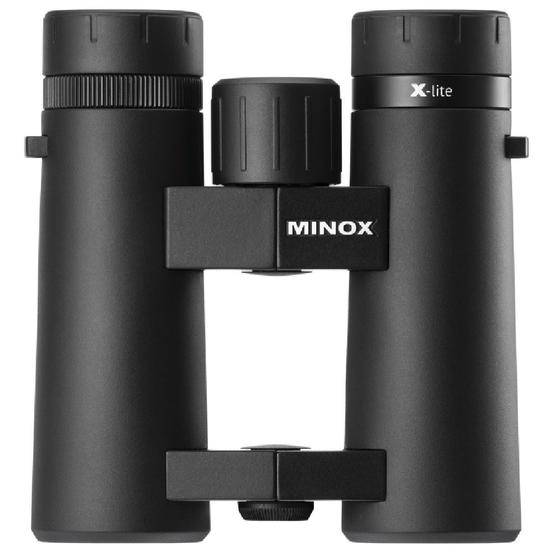

Minox - X-Lite 10x42 Binoculars

The MINOX X-lite series binoculars are always at your side when the next adventure is around the corner. While travelling, hiking or observing animals and plant life – with the 10x magnification you are right in the middle of the action with your MINOX X-lite binoculars and can see details from far away. Their neutral colour rendition and high contrast offer you very good imaging performance.

Thanks to the robust housing, the X-lite series is also well protected against outside influences. A nitrogen filling prevents fogging from the inside. Discover your introduction to the world of MINOX – with binoculars from the X-lite series!

Note: Product is shown in use for illustration Only, additional equipment is not included.





Prism Type Roof (BAK4)
Magnification 10
Objective Lens Diameter 42 mm
Angle of View 6.1° (Actual)
Field of View 319.28' @ 1000 yd / 106 m @ 1000 m
Minimum Focus Distance 8.2' / 2.5 m
Operating Temperature °C -10° bis +50°
Exit Pupil Diameter 4.2 mm
Eye Relief 16.1 mm
Interpupillary Adjustment 56 to 76 mm / 2.2 to 3"
Diopter Adjustment -5 to +5
Focus Type Center
Fogproof Yes
Water Resistance Waterproof, IPX7
Dimensions  5.75 x 5.31 x 2.17" / 14.6 x 13.5 x 5.5 cm
Weight 20.81 oz / 590 g

Key Features of the Minox X-Lite 8x56 Binoculars

  • Turnable eyecups: ideal for eyeglass wearers
  • Neutral colour rendition and high contrast
  • High ease of use due to very good ergonomics
  • High detail recognition
  • Waterproof according to IPX7, purged with nitrogen
  • Large field of view

Ideal for people wearing glasses

To ensure that people wearing glasses also have an optimal field of view MINOX binoculars are fitted with rotating eyecups.

For use without wearing glasses

Those who wear glasses must leave the rotating eyecups on both eyepieces in the original position (as delivered) or, if necessary, turn the eyecups clockwise until they noticeably engage. In this setting, you can enjoy the entire field of view without disturbing interferences at the edges.

The right distance between the eyes (inter-pupillary distance)

Look into the eyepieces of your binoculars and adjust the angle of the hinged tubes until you have a singular circular image.

Focusing

  • For a pin-sharp image, the definition you must adjust the optics of the binoculars to your individual vision. To do this, please proceed as follows:
  • First, look at an object far away. With the right eye closed, turn the focusing knob until the object in view has become perfectly sharp.
  • Next, look at the same object in the distance with the left eye closed and turn the diopter adjustment ring on the right eyepiece until the object is perfectly sharp.
  • Your MINOX binoculars are now set to the individual vision of both eyes.
  • To observe objects at various distances, use the focus adjustment knob to obtain a clear and sharp image.

Attache a Tripod

For a shudder-free image, we recommend using a tripod, especially with binoculars with a higher magnification. The MINOX tripod adapter is available as an optional accessory for this purpose.

Remove the screw cap (6) on the bottom of the binoculars and attach the MINOX tripod adapter into the screw socket. Keep the screw cap (6) in a safe place and reattach it after removing the tripod adapter.
