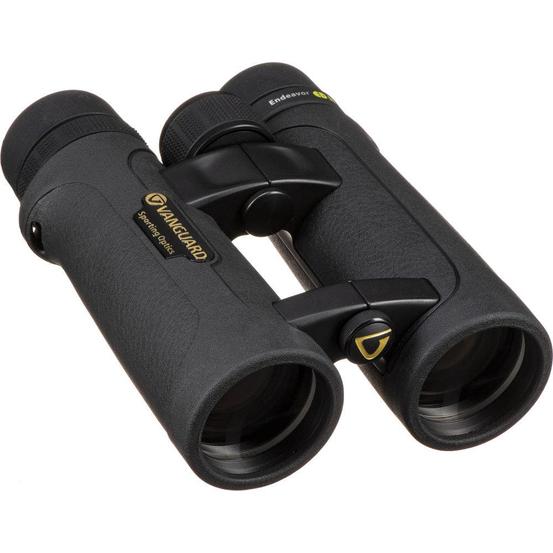

Vanguard Endeavor ED II - Endeavor ED II 8x42 Binoculars

The Vanguard Endeavor ED II 8x42 Binoculars from Vanguard Optics feature extra-low dispersion (ED) glass and phase-corrected BAK4 prisms that work together to virtually eliminate chromatic aberration, which produces images with true color fidelity across the entire field of view and enhanced contrast. Complementing the glass and prisms are anti-reflection fully multi-coated optics that improve light transmission for bright and clear images, with greater low-light performance.

An open-bridge design helps to reduce weight without sacrificing strength and provides a large surface area to hold. Pebbled rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight magnesium-alloy housing is nitrogen filled and O-ring sealed for fog and waterproof performance, and the three-stage click-stop twist-up eyecups provide a custom-fit eye relief for use with or without eyewear.



Key Features of the Vanguard Endeavor ED II 8x42 Binoculars

  • Extra-Low Dispersion (ED) Glass
  • Phase-Corrected Roof Prisms
  • Anti-Reflection Fully Multi-Coated Glass
  • Ergonomic Open-Bridge Configuration
  • Durable Magnesium-Alloy Housing
  • Textured Center Focus Wheel
  • Nitrogen-Filled Fogproof, Waterproof
  • Click-Stop Twist-Up Eyecups
  • Pebbled Rubberized Armor
  • Tripod Mountable with Optional Adapter



Optical Performance

  • 8x magnification
  • 42mm objective lens diameter
  • Extra-low dispersion (ED) lenses virtually eliminate chromatic aberration for true color transmission across the entire field of view
  • Phase-corrected BAK4 prisms provide improved light reflection, high contrast, and true color fidelity
  • Anti-reflection fully multi-coated optics enhance low-light performance
  • 57.6° apparent field of view
  • 377 ft field of view at 1000 yd

Use and Handling

  • Knurled center focus wheel
  • Open-bridge design reduces weight and provides a more comfortable grip
  • Three-stage click-stop twist-up eyecups for use with or without eyewear
  • Right-eye locking diopter adjustment
  • Tripod mountable with optional adapter

Construction Details

  • Durable magnesium-alloy housing
  • Nitrogen filled and O-ring sealed for fog and waterproof performance
  • Pebbled rubberized protective housing armor
  • Flip-down tethered objective lens covers



  • MPN - V240831
  • GTIN - 4719856240831
Magnification 8x
Objective Lens Diameter 42 mm
Angle of View 7.2° (Actual)
Field of View 378' @ 1000 yd / 126 m @ 1000 m
Minimum Focus Distance 6.6' / 2 m
Exit Pupil Diameter 5.3 mm
Eye Relief 19.5 mm
Diopter Adjustment -4 to +4
Focus Type Center
Fogproof Yes, Nitrogen Filled
Water Resistance Waterproof
Environmental Protection Advertised as Water Resistant
*Test Methodology Not Supplied
Dimensions 6.1 x 5.1" / 15.4 x 13 cm
Weight 27.16 oz / 770 g
