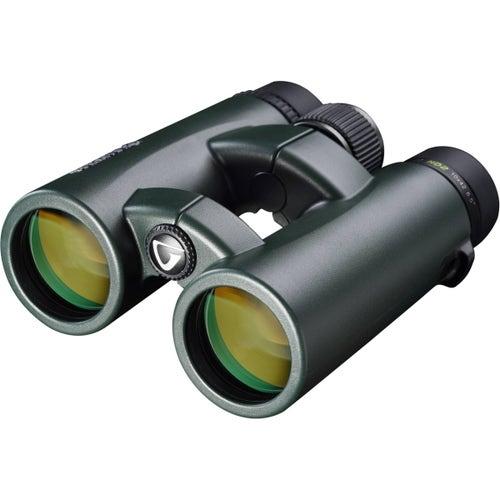

Vanguard VEO HD2 10x42 Binoculars

Vanguard VEO HD2 10x42 Binoculars

The Vanguard VEO HD2 10x42 Binoculars from Vanguard Optics feature extra-low dispersion (ED) glass and BAK4 prisms that work together to virtually eliminate chromatic aberration, which produces images with true color fidelity across the entire wide 65° apparent field of view and enhanced contrast. Complementing the glass and prisms are anti-reflection fully multicoated optics that improve light transmission for bright and clear images with greater low-light performance.

An open-bridge design and carbon composite housing help to balance the binoculars and reduce weight without sacrificing strength. The open bridge also provides a large surface area to hold for increased stability. Mitsubishi rubber armor and thumb indents on the bottom of the chassis help to give protection from drops and impacts and provide a non-slip grip. Designed for durability, the housing is nitrogen filled and O-ring sealed for fog and waterproof performance, and the twist-up eyecups provide a custom-fit eye relief for use with or without eyewear.



Prism Type Roof (BAK4)
Magnification 10x
Objective Lens Diameter 42 mm
Angle of View 6.5° (Actual)
Field of View 343.4' @ 1000 yd / 114 m @ 1000 m
Exit Pupil Diameter 4.2 mm
Minimum Focus Distance 6.6' / 2 m
Exit Pupil Diameter 4.2 mm
Eye Relief 19 mm
Interpupillary Adjustment 58 to 74 mm / 2.3 to 2.9"
Diopter Adjustment Yes
Focus Type Center
Fogproof Yes, Nitrogen Filled
Water Resistance Waterproof
Dimensions 6 x 5 x 2.1" / 15.2 x 12.7 x 5.4 cm
Weight 25 oz / 710 g
Package Weight 1.2 kg
Box Dimensions (LxWxH) 23 x 19 x 8.8 cm

Key Features of the Vanguard VEO HD2 10x42 Binoculars

  • Extra-Low Dispersion (ED) Glass
  • Anti-Reflection Fully Multicoated Glass
  • Ergonomic Open-Bridge Configuration
  • Textured Center Focus Wheel
  • Twist-Up Rubber Eyecups
  • Compact BAK4 Roof Prisms
  • Wide 65° Apparent Angle of View
  • Light & Strong Carbon Composite Housing
  • Nitrogen-Filled, Fog & Waterproof
  • Tripod Mountable with Optional Adapter



Optical Performance

  • High 10x power magnifies distant objects for detailed observations and identification
  • 42mm objectives boost low-light capabilities without adding excessive bulk and weight
  • Compact roof prism light path ensures the optical tubes are thin to fit more comfortably in the hand
  • BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
  • Extra-low dispersion (ED) glass lens elements reduce chromatic and spherical aberrations for increased contrast, improved color rendition, and sharpness without distortion across the entire field of view
  • Phase-corrected prism coatings reduce internal interference to improve contrast, clarity, and resolution
  • Anti-reflection fully multicoated optical surfaces maximize light transmission to ensure views are bright and clear in all conditions
  • Waterproof exterior lens membrane adds scratch resistance and allows oils to be cleaned off without leaving residue
  • Wide field of view helps to minimize the appearance of distracting hand-shake while presenting an immersive observational experience
  • 343-foot field of view at 1000 yards

Use and Handling

  • Open-bridge/dual-hinge configuration reduces weight without sacrificing strength or stability
  • Large slip-resistant center focusing wheel is easy to manipulate in cold or wet conditions or when wearing gloves
  • Locking right-eye dioptric correction enables you to achieve tack-sharp images even if your eyesight isn't perfect
  • Diopter locks to guard against accidental adjustment that can affect your focus
  • 58 to 74mm interpupillary adjustment range
  • Twist-up rubber eyecups for comfortable use with or without eyewear
  • Standard 1/4"-20 socket on front of the forward bridge hinge allows binocular to be tripod mounted using an optional adapter for hands-free use to eliminate vibrations and arm fatigue
  • Long 19mm eye relief produces a generous eye box that improves viewing comfort and reduces eye strain
  • Comfortable 4.2mm exit pupil will cover most pupils as they fully dilate in low light to keep the entire scene in view without vignetting

Construction Details

  • Bridge design provides more surface area for hands to improve grip security
  • Lightweight and durable carbon composite housing reduces weight without sacrificing stability
  • Mitsubishi rubber exterior armor protects against bumps and impacts
  • Thumb indents on bottom of housing improves grip security and comfort
  • Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
  • Tethered flip-down objective lens caps and a one-piece ocular rainguard allow for fast reaction to glassing opportunities while keeping the caps out of the way and safe
  • Includes soft carrying case and neck strap
  • Weight: 25 ounces
