DJI RS 4 Combo

DJI RS 4 Combo

DJI RS 4 Combo

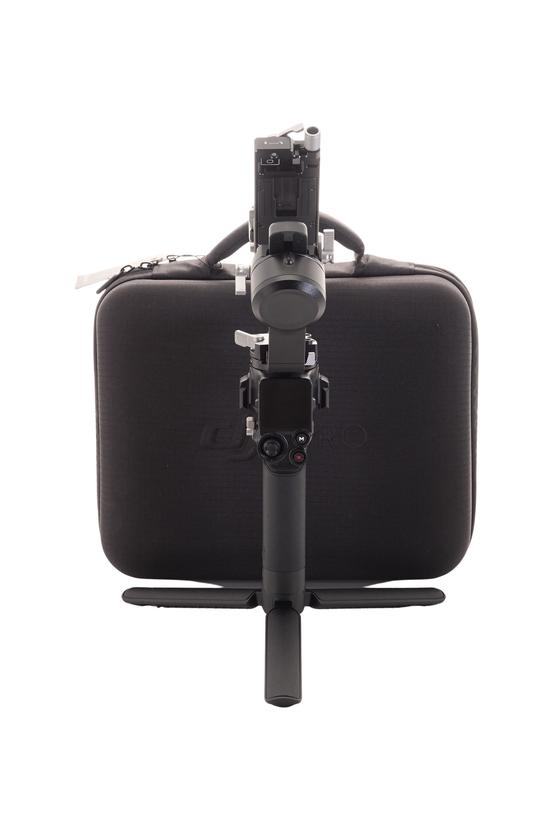

3 ⭐⭐⭐ This DJI RS 4 Combo has been thoroughly tested and serviced by our camera experts to ensure perfect functionality. While there are signs of wear, they do not affect performance. The photos show the actual product, with any noticeable marks highlighted for transparency. Includes: Battery grip, quick start guide, soft case, original packaging, brief case handle, screw pack, mini stand, USB C cable, USB C-C cable, focus motor, focus motor rod mount, gear strip, base plate, riser and lens plate.

The DJI RS 4 Combo is a lightweight commercial stabilizer supports next-generation native vertical shooting with enhanced operation efficiency, improved stabilization performance, and an upgraded accessory ecosystem. It empowers solo cinematographers with a more professional and efficient creative experience and the toolset to tell gripping visual stories.



Key Features of the DJI RS 4 Combo

  • 2nd-Gen Native Vertical Shooting
  • Joystick Mode Switch
  • Zoom/Gimbal Control
  • Teflon-Coated Axis Arms
  • Smoother Balancing
  • 3kg (6.6lbs) Payload Capacity
  • Extended Tilt Axis
  • RSA Communication Port
  • Extensive Control Ecosystem
  • High-Capacity Battery Grip
  • Approx. 2.5x Battery Runtime



2nd-Gen Native Vertical Shooting

DJI RS 4 features a newly designed horizontal plate, enabling the second generation of native vertical shooting for faster and simpler operation. Without the need for additional accessories, you can simply release the horizontal plate and secure it into the vertical position for an easy switch to vertical shooting, [2] paving the way for efficient vertical video creation.

2nd-Gen Automated Axis Locks

The automated axis locks allow RS 4 to quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. Additionally, the axis locks have smaller gaps when locked, further reducing gimbal shake.

Our Smoothest Balancing Experience Yet

DJI RS 4 features a Teflon™ coating for all three axes, resulting in reduced friction and smoother balancing.

When switching cameras or lenses, the fine-tuning knob on the tilt axis can move the camera forward or backward, achieving precise, millimeter-level balancing.

The upper quick-release plate has an added adjustable placement guide to ensure secure camera mounting.

Automatic Screen Lock

The OLED touchscreen incorporates a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick modes at a low brightness. This not only prevents accidental touches but also helps to conserve battery power.



Accessory Port Ronin Series Accessories (RSA)/NATO Ports
1/4"-20 Mounting Hole
‌Cold Shoe
Video Transmission Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
Battery Model: BHX711-3000-7.2‌‌V
Type: LiPo 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections Bluetooth 5.1
Charging Port (USB-C)
Ronin App Requirements iOS 11.0 or above
Android 8.0 or above
Languages Supported by the Touchscreen English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Tested Payload 3 kg (6.6 lbs)
Maximum Controlled Rotation Speed Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°
Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power 8 dBm
Operating Temperature -20° to 45° C (-4° to 113° F)
Weight ‌Gimbal: Approx. 1066 g (2.35 lbs)
Grip: Approx. 203 g (0.45 lbs)
‌Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)
Dimensions ‌Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
Connections Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
Expansion Port Cold Shoe
Operating Frequency 2.400-2.4835 GHz
5.725-5.850 GHz
Weight 126 g (0.27 lbs)
Dimensions 82×63×24 mm (L×W×H)
Transmitter Power (EIRP) ‌2.400-2.4835 GHz:
25 dBm (FCC)
20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:
25 dBm (FCC/SRRC)
14 dBm (CE)
Battery Capacity: 2970 mAh
Compatible Charger: 5 V/2 A
Charging Time: Approx. 2.5 hours
Operating Time: Approx. 3.5 hours
Transmission Range 200 m (SRRC/FCC)
100 m (CE)

Measured in an unobstructed environment free of interference.
Latency 60 ms
Operating Current/Voltage 900 mA/3.7 V
Operating Temperature 0° to 45° C (32° to 113° F)
